Bot Management

ClawMachine manages bot Helm releases in the runtime namespace (default claw-machine).

Supported Bot Types

• OpenClaw
• PicoClaw
• IronClaw
• BusyBox (dev mode)

See Bot Types for defaults.

Install Flow

Dashboard install is a two-step wizard:

1. Infrastructure step (POST /bots/new/infra) : release name, persistence, ingress/egress, allowed domains, workspace import, backup settings.
2. Config step (POST /bots/new/config) : onboarding-generated bot-specific config questions and model/secret mappings.

Final install request is POST /bots.

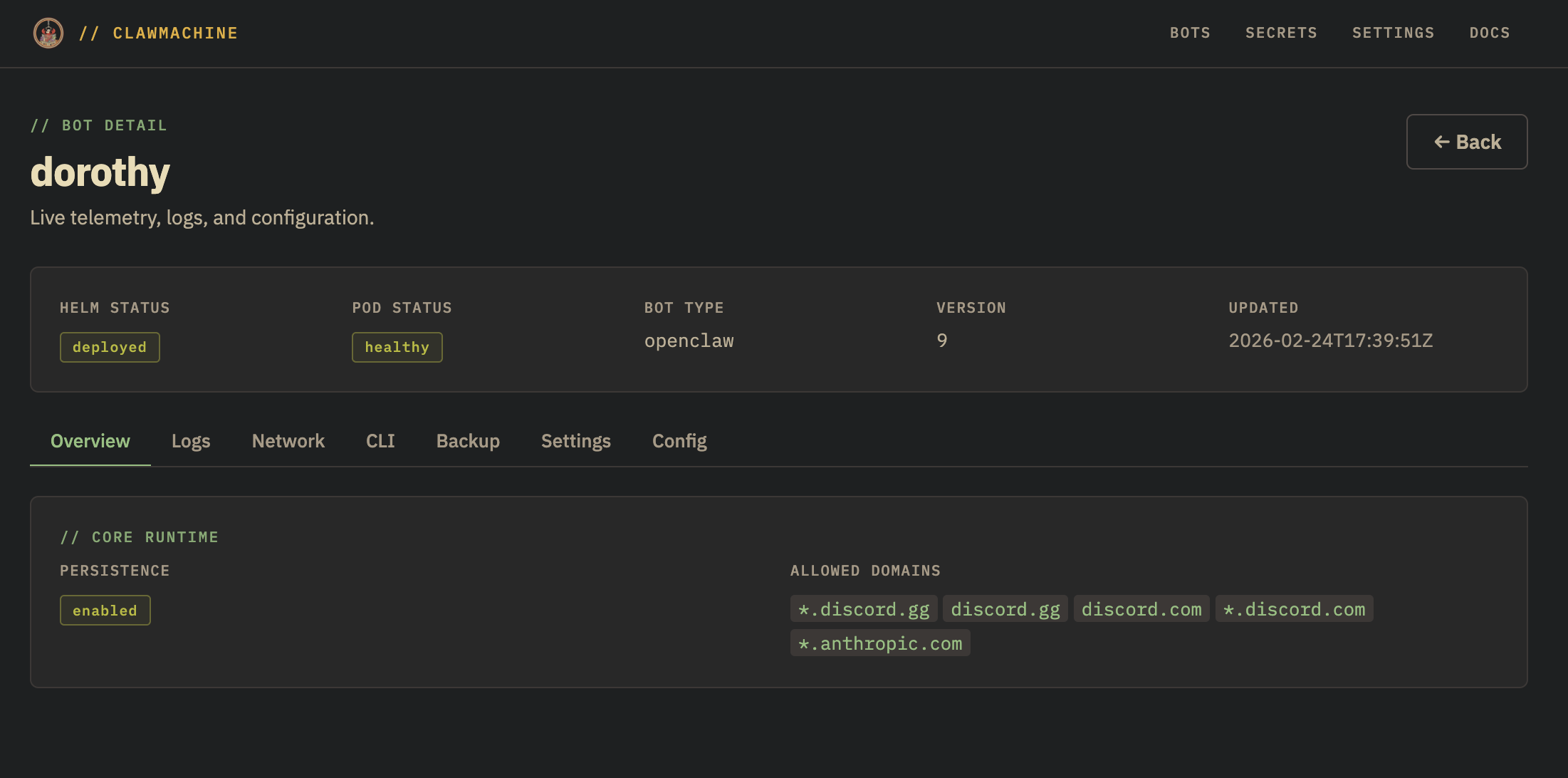

Bot Detail

/bots/{name}/page includes:

• overview/status
• logs (GET /bots/{name}/logs)
• network flows (GET /bots/{name}/network)
• bot CLI execution (POST /bots/{name}/cli, OpenClaw only)
• core settings save path (PUT /bots/{name} and PUT /bots/{name}/config)
• restart/uninstall actions

API Operations

# list
curl http://localhost:8080/bots

# install
curl -X POST http://localhost:8080/bots -H 'Content-Type: application/json' -d '{"releaseName":"my-bot","botType":"openclaw","values":{}}'

# status
curl http://localhost:8080/bots/my-bot

# upgrade values
curl -X PUT http://localhost:8080/bots/my-bot -H 'Content-Type: application/json' -d '{"botType":"openclaw","values":{"replicas":2}}'

# uninstall
curl -X DELETE http://localhost:8080/bots/my-bot

Secret Handling in Bot Config

Install/upgrade supports:

• envSecrets bindings (env var -> secret/key)
• backup credential refs resolved from ExternalSecrets
• chart values with sensitive fields stripped/redacted where required
